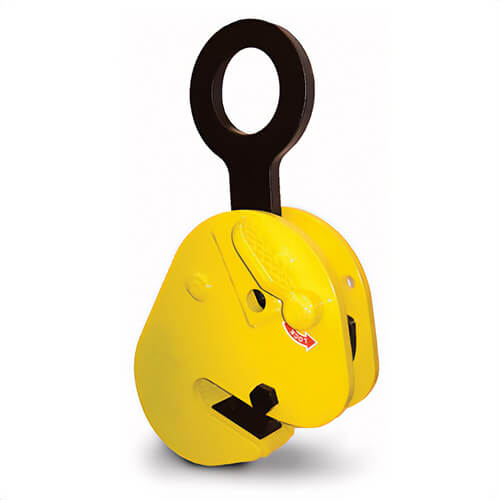

CM® Camlok™ CG4 CG Series Girder Turning Clamp, 900 to 8800 lb Load, 1-1/4 in Jaw, 11.417 in OAW, Cam/Spring Locking
SKU
CG4-10449
UPC #043927226085
Manufacturer #CG4
$2,900.66
$2,900.66
Quantity Break Pricing may apply in the cart
Availability:
Call for availability
Description
CM® Camlok™ Girder Turning Clamp, Series: CG Series, 900 to 8800 lb, 1-1/4 in Jaw Opening, 3.504 in Bail Opening Height, 6.339 in Bail Opening Width, 11.417 in Overall Width, Cam/Spring Locking
Features
- Can lift and turn beams up to 90° and are designed to land the beam in either the vertical or horizontal position
- Fitted with cam/spring operated safety lock
- Incorporates a positive lock onto one of the uppermost edges, which will allow the beam to be set down with the flange vertical
- For long girders, fabrications and welded structures, two clamps and a lifting beam may be required
- They are general purpose clamps and can be used on rolled steel joists, beams and fabrications up to a surface hardness of 300 Brinell (32 HRC)
- Design factor 4:1
Specs
| Manufacturer Part Number | CG4 |
|---|---|
| Manufacturer | Columbus McKinnon Corporation |
| Brand Name | CM |
| UPC | 043927226085 |
| Width (in) | 11.417 |
| Series | CG |
| Jaw Opening | 1-1/4 in |
| Package Quantity | 1/Each |
