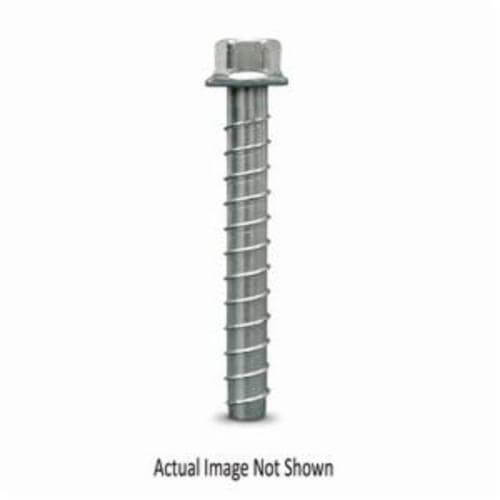

Simpson Strong-Tie® THD50400H Titen HD® Heavy Duty Screw Anchor, 1/2 in dia, 4 in OAL, Hex Washer Head Drive, Carbon Steel, 3-1/4 in Min Embedment

SKU
ANC30195
UPC #707392739609
Manufacturer #THD50400H
$63.80
$63.80
Quantity Break Pricing may apply in the cart
Availability:
Generally in stock, call for availability
Simpson Strong-Tie® Screw Anchor, Heavy Duty, Series: Titen HD®, 1/2 in dia, 4 in OAL, Hex Washer Head Drive, Carbon Steel, 3-1/4 in Minimum Embedment Depth, 1/2 in Drill, Zinc Plated, Applicable Materials: Concrete and Masonry, 3/4 in Head, 6-1/4 in Maximum Work Thickness, 7455 lb Shear Strength, 20130 lb TensileThe Original High-Strength Screw Anchor For Use in Cracked and Uncracked Concrete, as Well as Uncracked Masonry. The Titen HD® Offers Low Installation Torque and Outstanding Performance. Designed and Tested in Dry, Interior, Non-Corrosive Environments or Temporary Outdoor Applications, The Titen HD® Demonstrates Industry-Leading Performance Even in Seismic Conditions.
Features
  • Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
  • Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Standard fractional size
  • Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
  • No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD® installs in concrete with 50% less torque than competitor anchors
  • Hex washer head requires no separate washer and provides a clean installed appearance
  • Removable - ideal for temporary anchoring or applications where fixtures may need to be moved
  • 5/8 in dia baseplate clearance hole
  • 65 ft-lb maximum installation torque
  • 3-3/4 in D minimum hole
  • 1-3/4 in minimum edge distance
  • 3 in minimum spacing
  • 97000 PSI yield strength
More Information
Manufacturer Part Number THD50400H
Manufacturer Simpson Strong-Tie
Brand Name SIMPSON STRONG-TIE®
UPC 707392739609
Standard Package Quantity 80/CT
Diameter 1/2 in
Standard Approvals
  • U S Patent 5,674,035/6,623,228
  • City of Los Angeles RR25741
  • RR25560
  • Florida Statewide Product FL15730.7
  • FM 3017082
  • 3035761
  • 3043442
Series Titen HD®
Minimum Embedment Depth 3-1/4 in
Maximum Work Thickness 6-1/4 in
Shear Strength 7455 lb
Head Drive Type Hex Washer
Applicable Materials Concrete and Masonry
Head Size 3/4 in
Tensile Strength 20130 lb
Type Heavy Duty
Material Carbon Steel
