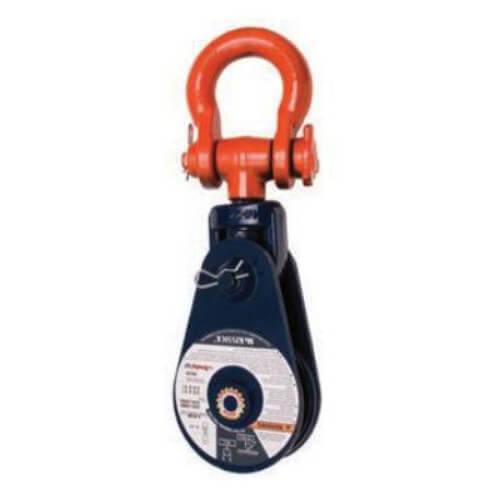

McKissick® 109420 419 Light Champion Snatch Block With Shackle, Wire Rope Cable, 3/4 in, 8 ton Load, 12 in OD

SKU
BLO10045
Manufacturer #109420
$1,356.00
$1,609.64
Quantity Break Pricing may apply in the cart
Availability:
Generally in stock, call for availability
McKissick® Snatch Block, Series: 419 Light Champion, Wire Rope Cable, 3/4 in Maximum Cable, 8 ton, 12 in Sheave Outside dia, Bronze Bushing Bearing
Features
  • Forged steel swivel tees, yokes and shackles
  • Opening feature permits insertion of rope while block is suspended From gin-pole
  • 3 in thru 18 in 418 and 419 blocks have exclusive bolt-retaining spring to assure No lost bolts
  • Can be furnished with S-4320 hook Latch
  • Pressure lube fittings
More Information
Manufacturer Part Number 109420
Manufacturer Crosby Group
Brand Name MCKISSICK®
Standard Approvals
  • ASME B30.26
  • OSHA 1926.1431/1926.1501
  • CE Certified
Series 419 Light Champion
Maximum Cable Size 3/4 in
Sheave Outside Diameter 12 in
Bearings Bronze Bushing
Cable Type Wire Rope
Write Your Own Review
You're reviewing:McKissick® 109420 419 Light Champion Snatch Block With Shackle, Wire Rope Cable, 3/4 in, 8 ton Load, 12 in OD
Datasheet (338.04 kB)
