Jet® Jdp-20Mf, 1.5 Hp, 115/230 Vac, 3/4 In Chuck, 20 In Swing, 18-1/2 In L X 16 In W Table

SKU
TEL80017
UPC #662755104121
Manufacturer #354170
$1,584.04
$1,584.04
Quantity Break Pricing may apply in the cart
Availability: In stock

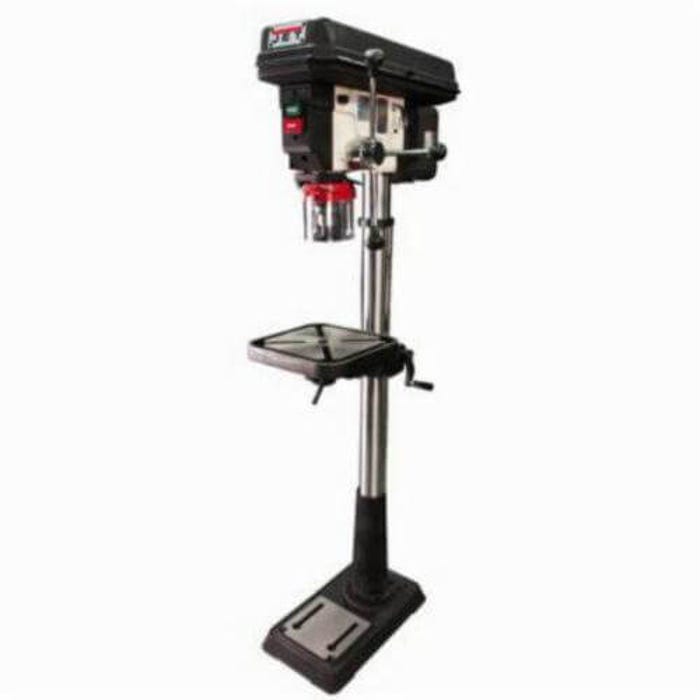

Jet® Floor Drill Press, 3/4 in Chuck, 20 in Swing, MT-3 Spindle Taper, 4-5/8 in Spindle Travel, 150 to 4200 RPM Spindle Speed, 12 Spindle Speed, 29-1/8 in Spindle to Table Distance, 10 in Spindle to Column Distance, 18-1/2 in L x 16 in W Table, 80 lb Table Load, 45° Table Tilt, 13-3/4 x 22-3/4 in Base, 3-3/8 in Column dia, 1.5 hp, 115/230 VAC, 18 A, 67 in H x 33-1/2 in W x 18-1/2 in D

Accuracy, Stability and Versatility are The Benchmark Features of The Jet® 15 in and 20 in Drill Presses. This High Quality Line of Jet® Drill Presses Offer a Greater Range in Spindle Speeds Than Other Machines of This Class. Jet® Backs Their Machines With The Industry-Leading Two Year Warranty.

Features
  • Hinged metal belt and pulley cover
  • Quick adjustment motor mount for rapid changing of spindle speeds
  • Rotating, 45° tilting, crank operated worktable with release clamp
  • On/off switch located on front of drill press head
  • 1/2 in diameter external depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Spindle is supported by high quality bearings
  • Telescoping safety spindle guard
  • 1 in cast iron and 3/4 in mild steel drilling capacity
  • 46-3/4 in spindle distance to base
  • 21-1/2 in table travel
  • No 6 and 1/2 in T-Slots
  • 3-1/2 in T-Slot centers
  • 13 x 8-1/2 in base work table
  • No 2 and 5/8 in base slots
More Information
Manufacturer Part Number 354170
Manufacturer JPW Industries
Brand Name JET®
UPC 662755104121
Spindle to Column Distance 10 in
Spindle to Table Distance 29-1/8 in
Spindle Speed 150 to 4200 rpm
Number of Spindle Speeds 12
Table Size 18-1/2 in L x 16 in W
Swing 20 in
Table Load Capacity 80 lb
Table Tilt 45 deg
Column Diameter 3-3/8 in
Spindle Taper MT-3
Dimensions 67 in H x 33-1/2 in W x 18-1/2 in D
Amperage Rating 18 A
Chuck Size 3/4 in
Horsepower 1.5 hp
Spindle Travel 4-5/8 in
Voltage 115/230V AC
