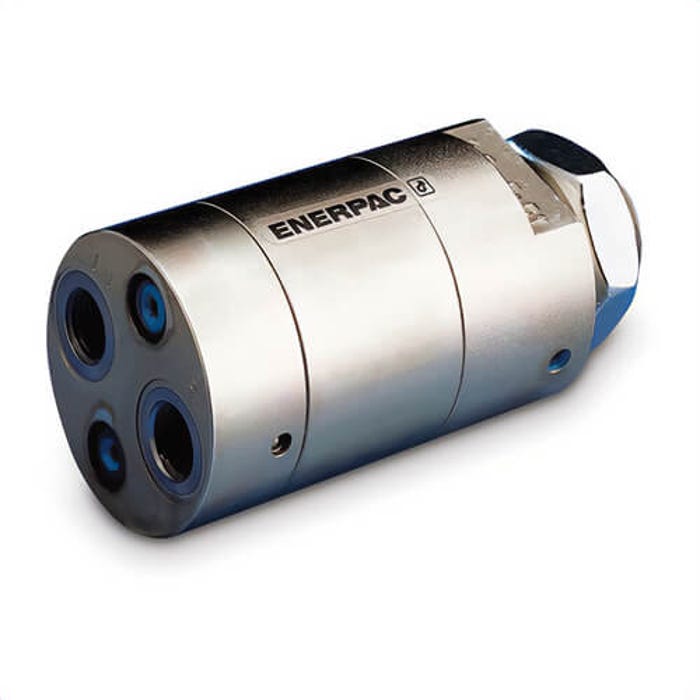

Enerpac® PIDM662 Dump Valve Face Mount Manifold Oil-to-Oil Hydraulic Pressure Intensifier with Port Filtration and Flow Orifice
SKU
PIDM662-10764
UPC #662005428939
Manufacturer #PIDM662
$2,159.00
$2,159.00
Quantity Break Pricing may apply in the cart
Availability:
Call for availability
Description
Enerpac® hydraulic pressure intensifier, dump valve face mount manifold oil-to-oil, PID series, for use with: double-acting power clamping cylinder, specifications: 6.6 to 1 pressure intensification ratio, 758 psi inlet, 5,000 psi outlet pressure, 793 in³/min inlet, 79 in³/min outlet flow, 1.97 in dia x 4.79 in W x 2.72 in H.
Features
- Internal bypass valving enables high output flow rates
- Includes dump valve, eliminates the need for an external pilot check valve
- Compact and self-contained design allows for ease of installation
- Select fit of all internal components provides long operating life
- When oil is supplied to the inlet port it flows freely past the check valves and the dump valve to the cylinder and advances it
- As the inlet pressure increases the oscillating pump automatically increases the outlet pressure by the chosen intensification
- Once the maximum pressure is reached, the pump frequency lowers and balances at the maximum pressure
- Free flow from the cylinder to tank occurs when the directional control valve is switched to supply the r-port
- Filtration 10 micron is required on all ports in the circuit to ensure trouble-free operation
Specs
| Manufacturer Part Number | PIDM662 |
|---|---|
| Manufacturer | Enerpac Tool Group |
| Brand Name | ENERPAC |
| UPC | 662005428939 |
| Warranty | Limited |
| Package Quantity | 1/Each |
