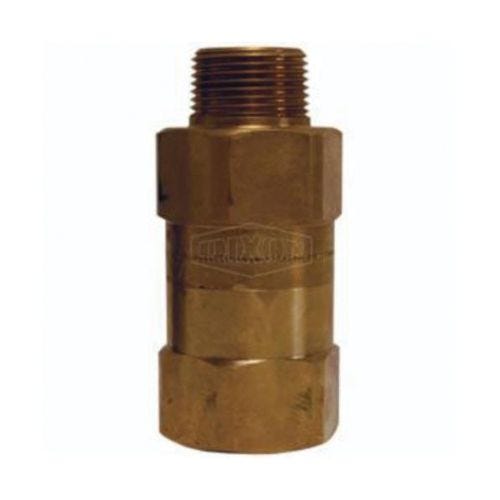

Dixon® SCVJ6 Safety Check Valve, 3/4 in Nominal, MNPT x FNPT End Style, Brass Body

SKU
HOS23395
UPC #089109867516
Manufacturer #SCVJ6
$85.70
$85.70
Quantity Break Pricing may apply in the cart
Availability:
Generally in stock, call for availability
Dixon® SCVJ6 Safety Check Valve, 3/4 in Nominal, MNPT x FNPT End Style, Brass Body
Features
  • High flow valve to provide optimum performance
  • Controls excess air flow (scum) in only one direction
  • Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
  • Solid brass body and valve
  • Stainless steel spring and roll pin
  • Conforms to OSHA regulation 1926.302 (B) (7) requiring a safety device at the source of the air supply and at branch air lines
  • Does not prevent backflow
  • Prop65: This product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • 132 to 148 SCFM at 90 psi
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
More Information
Manufacturer Part Number SCVJ6
Manufacturer Dixon Valve & Coupling
Brand Name DIXON®
UPC 089109867516
Length (in) 3.562
Standard Package Quantity 10/BX
Standard Approvals
  • OSHA 1926.302
Body Material Brass
Temperature Rating 250°F
End Style MNPT x FNPT
Pressure Rating 350 psi
Flow Rate 132 to 148 SCFM
Nominal Size 3/4 in
