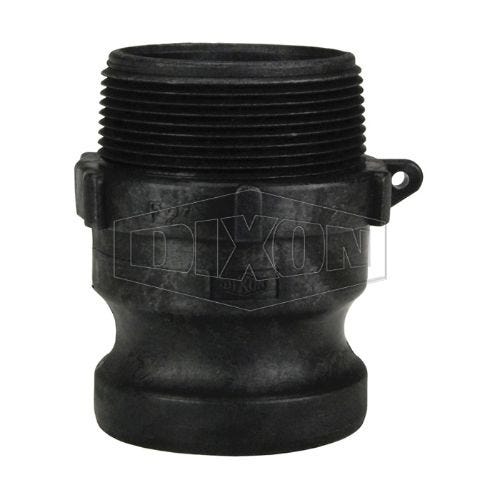

Dixon® PPF75 Type F Cam and Groove Adapter, 3/4 in, Male Adapter x MNPT, Polypropylene
SKU
PPF75-10639
Manufacturer #PPF75
$1.61
$1.61
Quantity Break Pricing may apply in the cart
Availability:
Call for availability
Description
Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 3/4 in Nominal Size, Male Adapter x MNPT, 1-9/16 in Length, 125 psi, Polypropylene, 1-9/16 in dia
Features
- Manufactured from a glass-filled polypropylene
- 1/2 in couplers and adapters will interchange with 3/4 in couplers and adapters, only the threads and barbs are 1/2 in
- 1-1/4 in couplers and adapters will interchange with 1-1/2 in couplers and adapters, only the threads and barbs are 1-1/4 in
- Polypropylene cam and groove should not be mixed with metal fittings
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70° F with a standard seal installed
- Not recommended for use with PTFE gaskets
- 125 psi at ambient temperature 70° F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Specs
| Manufacturer Part Number | PPF75 |
|---|---|
| Manufacturer | Dixon Valve & Coupling |
| Brand Name | DIXON |
| Length (in) | 1.562 |
| Height (in) | 1.5625 |
| Type | Type F |
| Warranty | Limited |
| Nominal Size | 3/4 in |
| Fitting/Connector Type | Adapter |
| Diameter | 1-9/16 in |
| Material | Polypropylene |
| Package Quantity | 1/Each |
