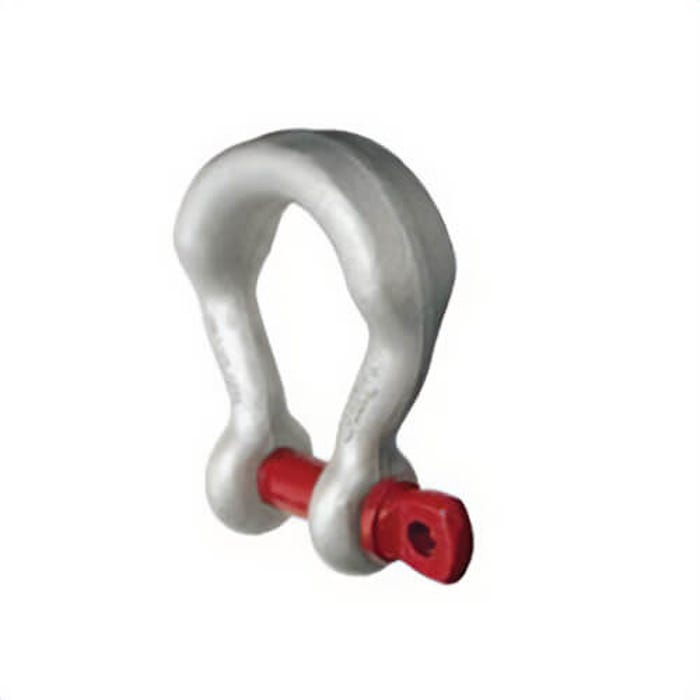

Crosby® 1021673 G-2169 Wide Body Shackle, 12.5 ton Load, 2.4 in, 1.13 in Screw Pin, Hot Dipped Galvanized
SKU
FIT11921
UPC #662547556039
Manufacturer #1021673
$212.00
$212.00
Quantity Break Pricing may apply in the cart
Availability:
Generally in stock, call for availability
Description
Crosby® Wide Body Shackle, series: G-2169, 12.5 ton, 2.4 in, 1.13 in Pin dia, Screw Pin, 4.63 in Inner Length, 1.63 in Inner Width, 1.69 in Opening, 2.38 in Eye Outer Size, 7.63 in OAL, 5.13 in OAW, Forged Alloy Steel Body, Alloy Pin, Hot Dipped Galvanized.
Features
- Individually proof tested and magnetic particle inspected Crosby® certification available at time of order
- Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
- Look for the Red Pin® the mark of genuine Crosby® quality
Specs
| Manufacturer Part Number | 1021673 |
|---|---|
| Manufacturer | Crosby Group |
| Brand Name | CROSBY |
| UPC | 662547556039 |
| Length (in) | 7.63 |
| Width (in) | 5.13 |
| Series | G-2169 |
| Standard Approvals |
|
| Working Load Limit (ton) | 12.5 |
| Type | Wide Body |
| Finish | Hot Dipped Galvanized |
| Shackle Size | 2-2/5 in |
| Eye Outer Size (in) | 2.38 |
| Opening Size | 1.69 in |
| Inner Width | 1.63 in |
| Inner Length | 4.63 in |
| Pin Diameter | 1.13 in |
| Package Quantity | 1/Each |
