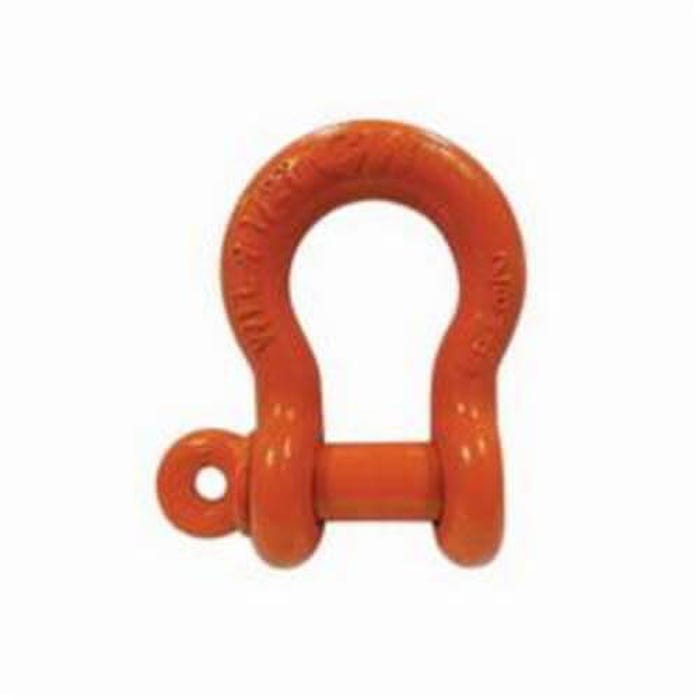

CM® M655AP Anchor Shackle, 15 ton Load, 11/8 in, 1-1/4 in dia Screw Pin, Orange Powder Coated
SKU
M655AP-10449
UPC #043927404735
Manufacturer #M655AP
$139.64
$113.52
Quantity Break Pricing may apply in the cart
Availability:
Generally in stock, call for availability
Description
CM® Anchor Shackle, 15 ton, 11/8 in, 1-1/4 in Pin dia, Screw Pin, 4-1/4 in Inner Length, 2-5/8 in Inner Width, 1.812 in Opening, 2-7/8 in Eye Outer Size, Alloy Steel Body, Alloy Steel Pin, Orange Powder Coated. Screw Pin Anchor/Chain Shackles Allow Quick and Easy Removal of The Screw Pin and Can Be Useful in Applications Where The Shackle is Frequently Removed, But Not So Much in Applications Where The Pin is Subject to Torque or Twisting.
Features
- Made of special bar quality (SBQ) steel having fine grain, reduced sulfur and phosphorus
- Shackles show major deformation before failure
- Working load limit and traceability codes shown as permanent markings on body
- All shackles have alloy quenched and tempered pins
- Anchor shackles can be side loaded or used for multiple connections
- Special products engineering available to fit your special lifting, tie down and pulling needs
- 5:1 design factor
Specs
| Manufacturer Part Number | M655AP |
|---|---|
| Manufacturer | Columbus McKinnon Corporation |
| Brand Name | CM |
| UPC | 043927404735 |
| Standard Approvals |
|
| Working Load Limit (ton) | 15 |
| Finish | Orange Powder Coated |
| Shackle Size | 1-3/8 in |
| Eye Outer Size (in) | 2/7/2008 |
| Opening Size | 1.812 in |
| Inner Width | 2-5/8 in |
| Inner Length | 4-1/4 in |
| Pin Diameter | 1-1/4 in |
| Package Quantity | 1/Each |
