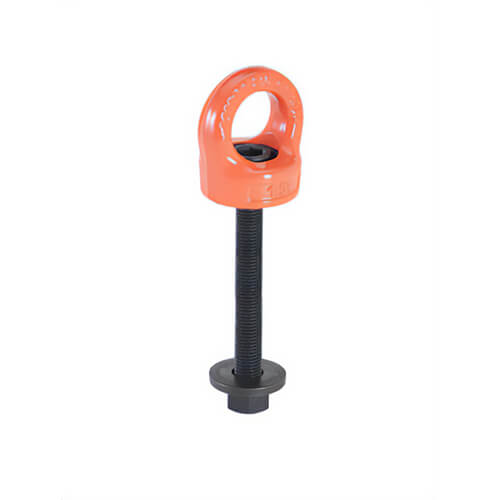

Cartec C810X08065 Swivel Eyebolt, High Quality, 0.3 ton Working Load Limit, M8 x 65 Thread Size

CARTEC

SKU

C810X08065-10082

Manufacturer #C810X08065

Be the first to review this product

$76.74

Quantity Break Pricing may apply in the cart

Availability:

Call for availability

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

A wide range of swivel eyebolts, products for lifting, for moving and for overturning heavy loads, as well as personal restraining devices: everything directly manufactured by Carcano.

Safety coefficient 4 in all loading directions

Designed, tested and certified in compliance with the technical directives GS-OA 15-04 – EN1677-1

Suitable for safe lifting in compliance with the machinery directive 2006/42/EC

Can be oriented at 360°

Tested at 100 % magnaflux

Tested at 20,000 fatigue cycles

Cylinder head screw with hexagonal slot cl. 10.9 with variable length in compliance with directive UNI5931-DIN912

We recommend the use of a washer DIN 6340 with appropriate dimensions to apply against the nut

On the axial pull there can be variation of +/-5° with a 10% decrease in capacity

If the eyebolt is installed against the nut it has to be high and the through hole has to be on the part to be lifted with a diameter maximum with respect to the nominal diameter of the screw used

When using a counter-nut, check that, once installed, both the base of the device and the counter nut are totally in contact with the surface of the part to be lifted

Specs

More Information
Manufacturer Part Number	C810X08065
Manufacturer	All Material Handling
Brand Name	CARTEC
Measurement System	Metric
Working Load Limit (ton)	0.3
Thread Size	M8 x 65
Package Quantity	1/Each
