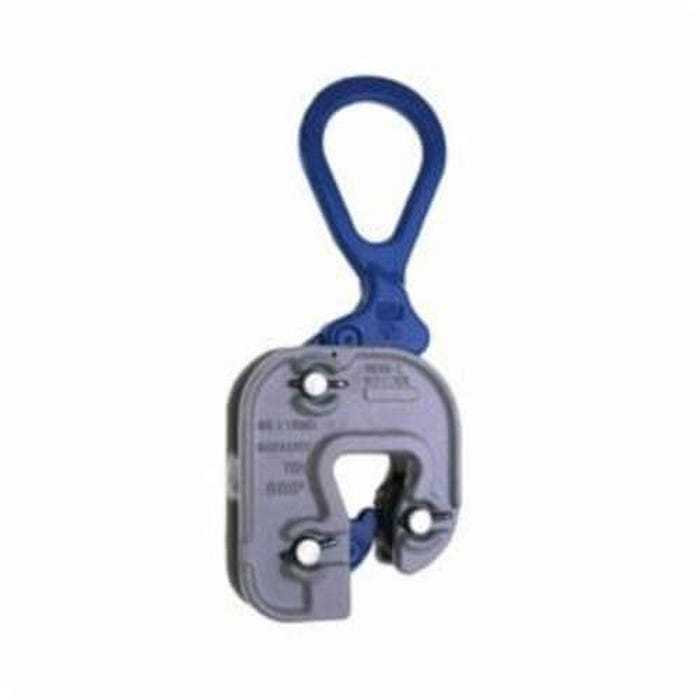

Campbell® 6423108 Plate Clamp, Structural Short Leg, Series: GX Series, 2 ton Load, 1/16 to 7/8 in Jaw Opening
SKU
6423108-10143
UPC #020418183041
Manufacturer #6423108
$877.47
$877.47
Quantity Break Pricing may apply in the cart
Availability:
Call for availability
Description
Campbell® Plate Clamp, Structural Short Leg, Series: GX Series, 2 ton, 1/16 to 7/8 in Jaw Opening, 3-5/16 in Bail Opening Height, 2-1/4 in Bail Opening Width, 5-1/8 in OAW, Load Activated Locking, Forged Steel.
Features
- Designed for a secure bite on small or odd shaped, wide flanged beams
- Can be used for both vertical and horizontal to vertical lifting through 180°
- Put short leg under plate when lifting from horizontal to vertical
- Replacement parts are same as for standard "GX" clamps
- Note - The pad and cam should be replaced at the same time
- Clamps are 100% proof tested and certificate of test supplied with each clamp
- Minimum wll of at least 10% of the maximum wll
- Fixed eye mounting
Specs
| Manufacturer Part Number | 6423108 |
|---|---|
| Manufacturer | Apex Tool Group |
| Brands | CAMPBELL |
| UPC | 020418183041 |
| Length (in) | 8 |
| Width (in) | 7.25 |
| Height (in) | 3.25 |
| Series | GX |
| Type | Structural Short Leg |
| Warranty | Limited Lifetime |
| Package Quantity | 1/Each |
