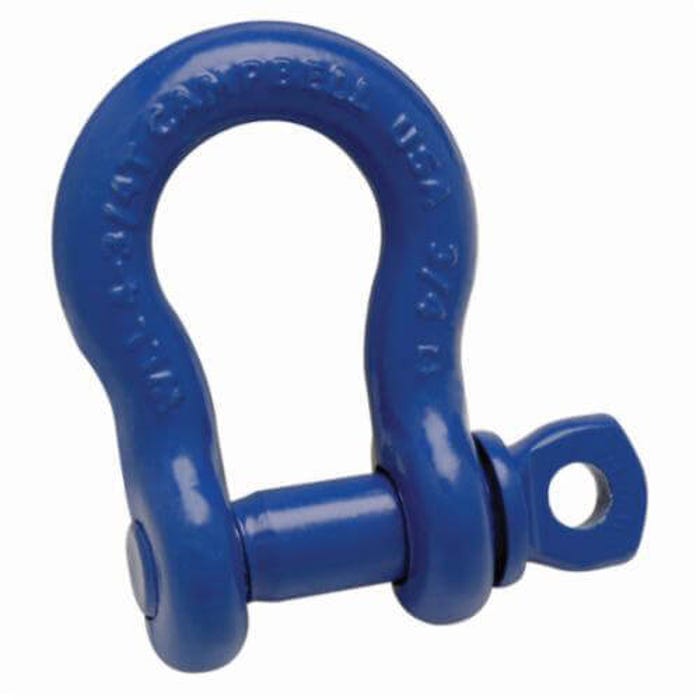

CampbellĀ® 5410505 C-419-S Anchor Shackle, 1500 lb Load, 5/16 in, 3/8 in dia Screw Pin, Painted

SKU
FIT61652
UPC #020418076176
Manufacturer #5410505
$15.29
$15.29
Quantity Break Pricing may apply in the cart
Availability:
Generally in stock, call for availability
Description
CampbellĀ® Anchor Shackle, series: C-419-S, 1500 lb, 5/16 in, 3/8 in Pin dia, Screw Pin, 1-1/4 in Inner Length, 27/32 in Inner Width, 17/32 in Opening, 3/4 in Eye Outer Size, Drop Forged Carbon Steel Body, Heat Treated Alloy Steel Pin, Painted.

Features
  • Self colored (painted blue)
  • Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
  • Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
  • 419 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
  • 6 : 1 design factor
  • Pins and bolts are heat treated and made of alloy steel

Specs
More Information
Manufacturer Part Number 5410505
Manufacturer Apex Tool Group
Brand Name CAMPBELL
UPC 020418076176
Length (in) 1
Width (in) 1
Height (in) 1
Series C-419-S
Standard Approvals
  • Federal Spec. RR-C-271
  • Type IVA
  • Grade A
  • Class 2
Working Load Limit (lb) 1,500
Finish Painted
Shackle Size 5/16 in
Eye Outer Size (in) 3/4
Opening Size 17/32 in
Inner Width 27/32 in
Inner Length 1-1/4 in
Pin Diameter 3/8 in
Package Quantity 1/Each
