Campbell® T5391235 999-G Anchor Shackle, 4.75 ton Load, 3/4 in, 7/8 in dia Bolt Pin, Galvanized
SKU
FIT52536
UPC #020418075568
Manufacturer #5391235
$35.00
$35.00
Quantity Break Pricing may apply in the cart
Availability:
In stock
Description

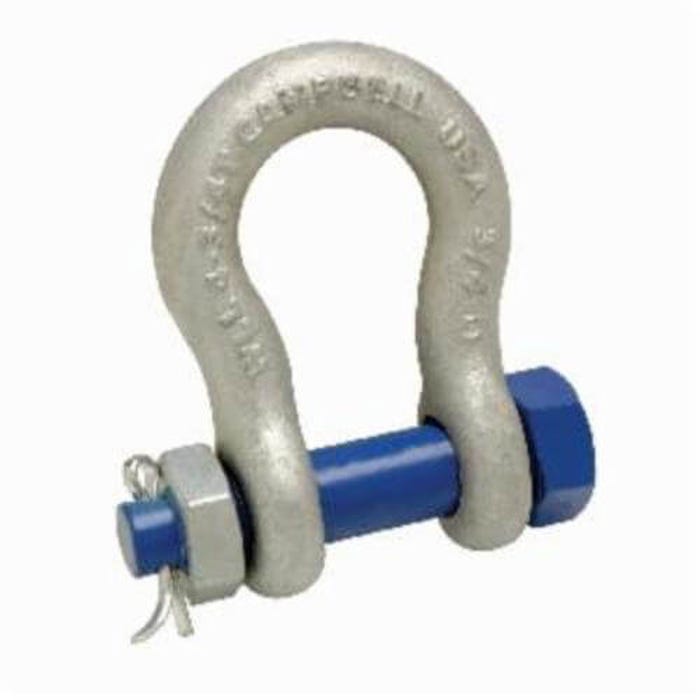

Campbell® Anchor Shackle, series: 999-G, 4.75 ton, 3/4 in, 7/8 in Pin dia, bolt Pin, 2-13/16 in Inner Length, 1-13/16 in Inner Width, 1-1/4 in Opening, 1-3/4 in Eye Outer Size, Drop Forged Carbon Steel Body, Alloy Steel Pin, Galvanized.
Features
- Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
- Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
- 999 series shackles meet or exceed all manufacturing requirements of the ASME B30.26 "rigging hardware", these include the material ductility requirement (Section 26-1.1.2), the design factor requirement (Section 26.1.2), the identification requirement (Section 26-1.5.1) and the effective temperature range (Section 26-1.6.1), the shackles can be proof tested in accordance with Section 26-1.4
- 6:1 design factor
- Pins and bolts are heat treated and made of alloy steel
Specs
| Manufacturer Part Number | 5391235 |
|---|---|
| Manufacturer | Apex Tool Group |
| Brands | CAMPBELL |
| UPC | 020418075568 |
| Length (in) | 4.875 |
| Width (in) | 4.375 |
| Height (in) | 1.75 |
| Series | 999-G |
| Standard Approvals |
|
| Working Load Limit (ton) | 4.75 |
| Finish | Galvanized |
| Shackle Size | 3/4 in |
| Eye Outer Size (in) | 1-3/4 |
| Opening Size | 1-1/4 in |
| Inner Width | 1-13/16 in |
| Inner Length | 2-13/16 in |
| Pin Diameter | 7/8 in |
| Package Quantity | 1/Each |
