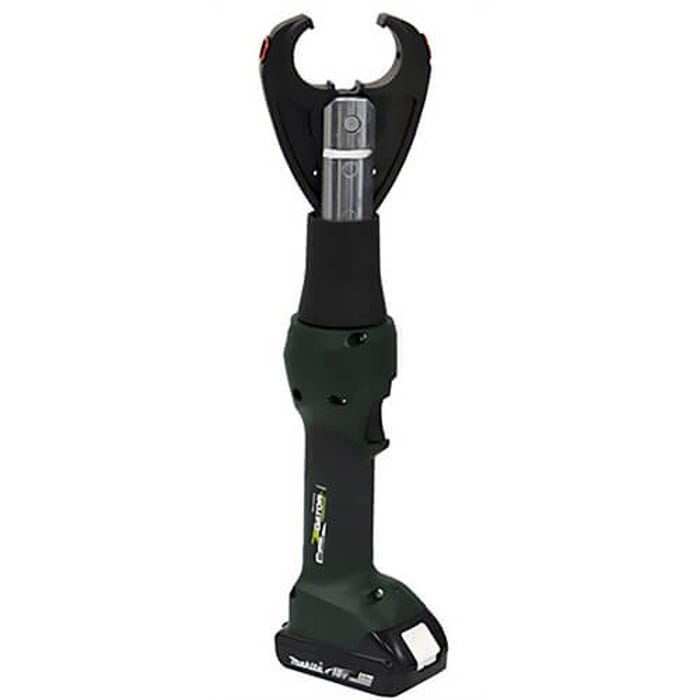

Greenlee® EK628LX11 Gator® Cordless Standard Die Crimper, 8 AWG to 600 kcmil Copper, 8 AWG to 350 kcmil, 12,000 lb, 18 VDC
SKU
EK628LX11-11113
UPC #783310609391
Manufacturer #EK628LX11
$2,462.09
$2,462.09
Quantity Break Pricing may apply in the cart
Availability:
Call for availability
Description
Greenlee® Gator® die crimper, cordless standard, bare tool bare tool/kit, series: EK628LX, crimping capacity: 8 AWG to 600 kcmil copper, 8 AWG to 350 kcmil aluminum, 12,000 lb crimping force, 120 VAC, 18 VDC lithium-ion battery, 2 ah battery, in-line style with overmold rubber grip handle, trigger control, 18-1/2 in OAL, 2-7/8 in W dimensions.
Features
- Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
- Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
- Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- State of the art 18V lithium-ion battery provides 70% more cycles per charge and faster cycle times
- LED light provides the operator with the battery charge and tool maintenance status
- In-line tool style is lightweight and very easy to control
- One trigger controls all tool functions
- Crimping head rotates 350°
- Tools automatically retract when the crimping cycle is complete
- Overmolded tacky grip areas make gripping the tool easier and more comfortable
- LED work light illuminates dark work areas
- Greenlee® battery powered crimping tools now use bio-degradable oil
- Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
- Available with 120, 12 or 230 VAC battery charger or with 120 or 230 VAC corded adapter in place of batteries and charger
- Equipped with CJ22 crimping jaws that accept Greenlee® KC22 and KA22 Series crimping dies
- When equipped with optional CJD3 crimping jaws, can be used with all industry "W" style crimping dies and Greenlee® KD6 Series dies
- When equipped with optional CJK crimping jaws
Specs
| Manufacturer Part Number | EK628LX11 |
|---|---|
| Manufacturer | Emerson Electric |
| Brands | GREENLEE |
| UPC | 783310609391 |
| Length (in) | 23 |
| Width (in) | 19 |
| Height (in) | 7 |
| Standard Approvals |
|
| Package Quantity | 1/Each |
