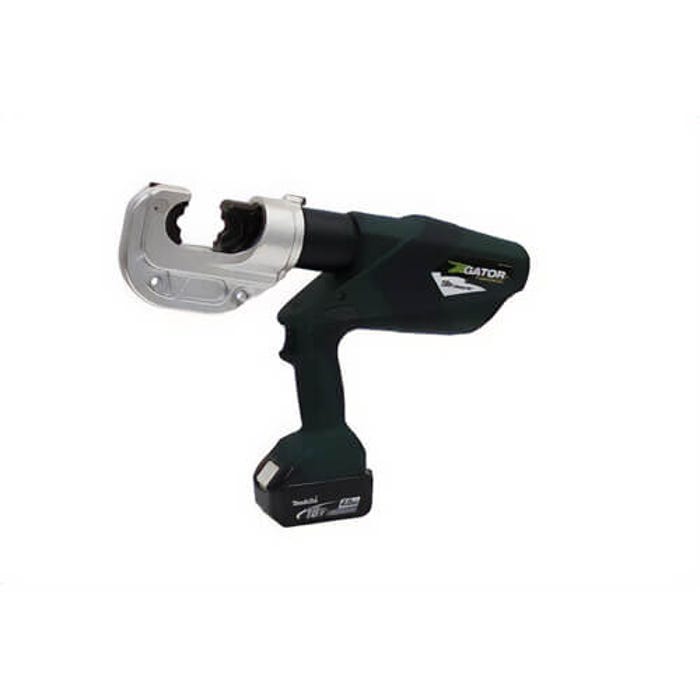

Greenlee® EK1240LX11 Gator® Cordless Standard Bare Tool Die Crimper, 8 AWG to 750 kcmil Copper, 24,000 lb Crimping, 18 VDC

GREENLEE

SKU

EK1240LX11-11113

UPC #783310609834

Manufacturer #EK1240LX11

Be the first to review this product

$5,232.87

Quantity Break Pricing may apply in the cart

Availability:

Call for availability

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Greenlee® Gator® die crimper, cordless standard, bare tool bare tool/kit, series: EK1240LX, crimping capacity: 8 AWG to 750 kcmil copper/aluminum, 24,000 lb crimping force, 120 VAC, 18 VDC lithium-ion battery, 4 Ah battery, pistol style with overmold rubber grip handle, black/red, trigger control, 16-1/4 in OAL, 13-1/2 in H x 3-1/8 in W dimensions.

Features

Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
State of the art 18V lithium-ion battery provides 70% more cycles per charge and faster cycle times
Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
LED light provides the operator with the battery charge and tool maintenance status
Stage 2 hydraulic system provides fast advance and power speeds, saving time
Forward handle position improves tool balance
One trigger controls all tool functions
Crimping head rotates 350°
Tools automatically retract when the crimping cycle is complete
Overmolded tacky grip areas make gripping the tool easier and more comfortable
LED work light illuminates dark work areas
Greenlee® battery powered crimping tools now use bio-degradable oil
Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
Available with 120, 12 or 230 VAC battery charger or with 120 or 230 VAC corded adapter in place of batteries and charger
Crimping head choices - EK1230L with 1.2 in (30 mm) opening uses Greenlee® KC12, KA12 and KD12 crimping dies plus all industry "U" style crimping dies, EK1240L with 1.65 in (42 mm) opening uses Greenlee® KC12, KA12 and KD12 crimping dies plus all industry "U" style crimping dies and EK1240KL uses Kearney PH2 style crimping dies

Specs

More Information
Manufacturer Part Number	EK1240LX11
Manufacturer	Emerson Electric
Brands	GREENLEE
UPC	783310609834
Length (in)	23
Width (in)	19
Height (in)	7
Standard Approvals	ARRA Compliant cULus Listed
Package Quantity	1/Each
