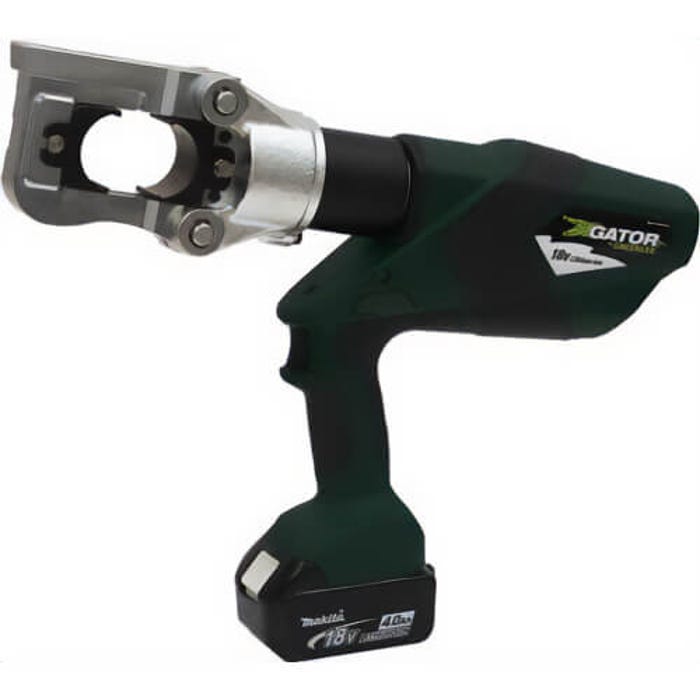

Greenlee® E12CCXLX120 Gator® Cordless Standard Bare Tool Multi Tool Die Crimper, 750 kcmil Aluminum, 24,000 lb Crimping, 18V

GREENLEE

SKU

E12CCXLX120-11113

UPC #783310611493

Manufacturer #E12CCXLX120

Be the first to review this product

$6,060.86

Quantity Break Pricing may apply in the cart

Availability:

Call for availability

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Greenlee® Gator® multi tool die crimper, cordless standard, bare tool, series: E12CCXLX, crimping capacity: 750 kcmil aluminum/copper, 12 ton crimping force, 18V, li-ion battery, 4 Ah battery, pistol with overmold rubber grip, trigger control, 16-1/2 in overall length.

Features

Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
State of the art 18V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
Retraction stop repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps
LED light provides the operator with the battery charge and tool maintenance status
Two-stage hydraulic system provides fast advance and power speeds, saving time
Forward handle position improves tool balance
Crimping head rotates 350°
Tools automatically retract when the crimping cycle is complete
Overmolded tacky grip areas make gripping the tool easier and more comfortable
LED work light illuminates dark work areas
Greenlee® battery powered crimping tools now use bio-degradable oil
Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
Available with 120 V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger use optional CCX blades and adapters
U.S. patent #6, 206, 663, #6, 532, 790, when used with Greelee® KC12 and KA12 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas & Betts® color-coded connectors, crimps on connections up to750 kcmil are UL and cUL classified
The tools also accept all industry U type dies

Specs

More Information
Manufacturer Part Number	E12CCXLX120
Manufacturer	Emerson Electric
Brands	GREENLEE
UPC	783310611493
Length (in)	23
Width (in)	11
Height (in)	7
Standard Approvals	cUL/UL Listed
Package Quantity	1/Each
