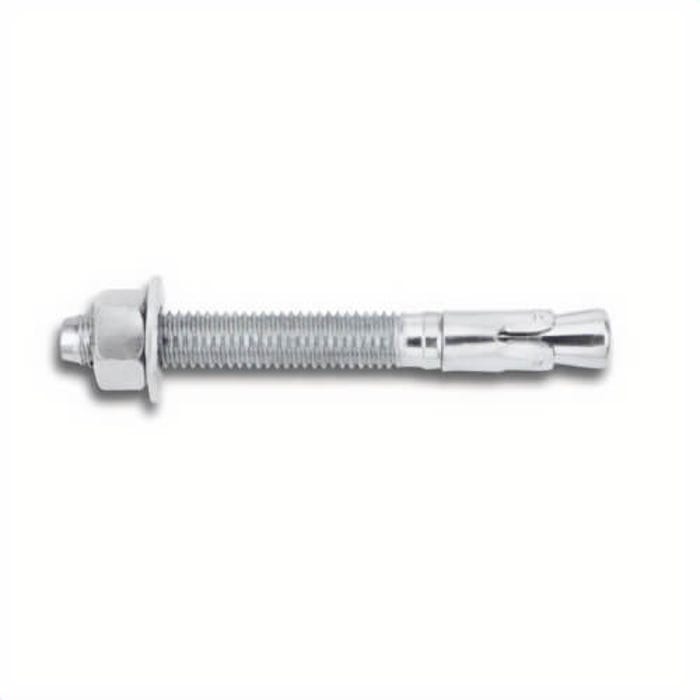

DeWALT® Power-Stud+® SD1 7438SD1 Expansion Wedge Anchor, 5/8 in dia, 8-1/2 in OAL, 6-1/2 in L Thread, Carbon Steel, Zinc Plated
SKU
7438SD1-PWR-12419
UPC #075352776279
Manufacturer #7438SD1-PWR
$2.58
$2.58
Quantity Break Pricing may apply in the cart
Availability:
Call for availability
Description
Powers™ Power-Stud+® SD1 wedge anchor, Expansion, 5/8 in dia, 8-1/2 in Overall Length, 6-1/2 in Thread Length, Carbon Steel, Zinc Plated, 2-3/4 in Minimum Embedment Depth, 5/8 in Drill, 5/8-11, Hex Head, UNC, 6815 lb Shear Strength, 5440 lb Tensile.
Features
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
Specs
| Manufacturer Part Number | 7438SD1-PWR |
|---|---|
| Manufacturer | Stanley Black & Decker |
| Brands | DEWALT |
| UPC | 075352776279 |
| Length (in) | 8.5 |
| Height (in) | 0.625 |
| Standard Approvals |
|
| Includes | Nut and Washer |
| Package Quantity | 1/Each |
