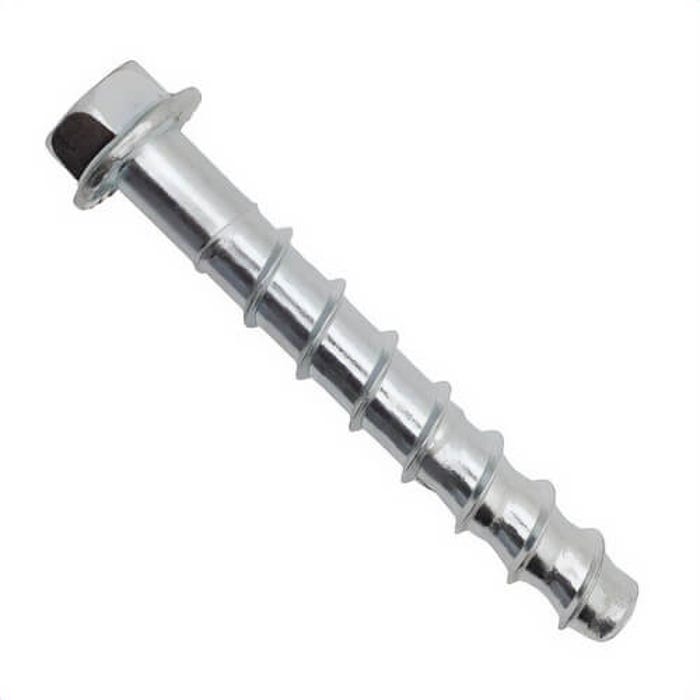

DeWALT® PFM1411100 Screw-Bolt™ High Performance Screw Anchor, 1/4 in dia, 3 in OAL, Hex Head Drive, Steel, 1 in D Minimum Embedment

DEWALT

SKU

PFM1411100-12419

UPC #075352304946

Manufacturer #PFM1411100

Be the first to review this product

$0.54

Quantity Break Pricing may apply in the cart

Availability:

Call for availability

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

DeWALT® Screw-Bolt™ screw anchor, high performance, 1/4 in dia, 3 in OAL, hex head drive, steel, 1 in minimum embedment depth, 1/4 in drill, zinc plated, applicable materials: normal weight concrete/sand lightweight concrete/concrete over steel deck/concrete masonry/solid clay brick, 7/16 in head, 2 in maximum work thickness, 1600/1755/1910/2080 lb shear strength, 1325/1400/1530/1725 lb tensile strength.

Features

Designed for standard ANSI tolerance drill bits
Tough threads for tapping high strength concrete
Can be installed closer to the edge than traditional expansion anchors
Fast installation with powered impact wrench
1 pc, finished head design
Patented thread design offers low installation torque
Ratchet teeth on underside of hex washer head lock against the fixture
Fully removable and re-installable in same hole
dia, L and identifying marking stamped on head of each anchor
1600/1755/1910/2080/2080 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete shear strength
1325/1400/1530/1725/1725 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete tensile strength

Specs

More Information
Manufacturer Part Number	PFM1411100
Manufacturer	Stanley Black & Decker
Brands	DEWALT
UPC	075352304946
Package Quantity	1/Each
